Scooter Brushed Electric Motor Sprocket T8F 36v 800w EBike 36 Volt 800W ZY1020
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Motor Model | ZY1020 |
| Color | Black |
| Wattage | 800 |
| Suitable For | Electric scooter |
| Brand | Unite |
| Sprocket Type | T8F |
| Type | DC Brush |
| Featured Refinements | Electric Scooter Motor |

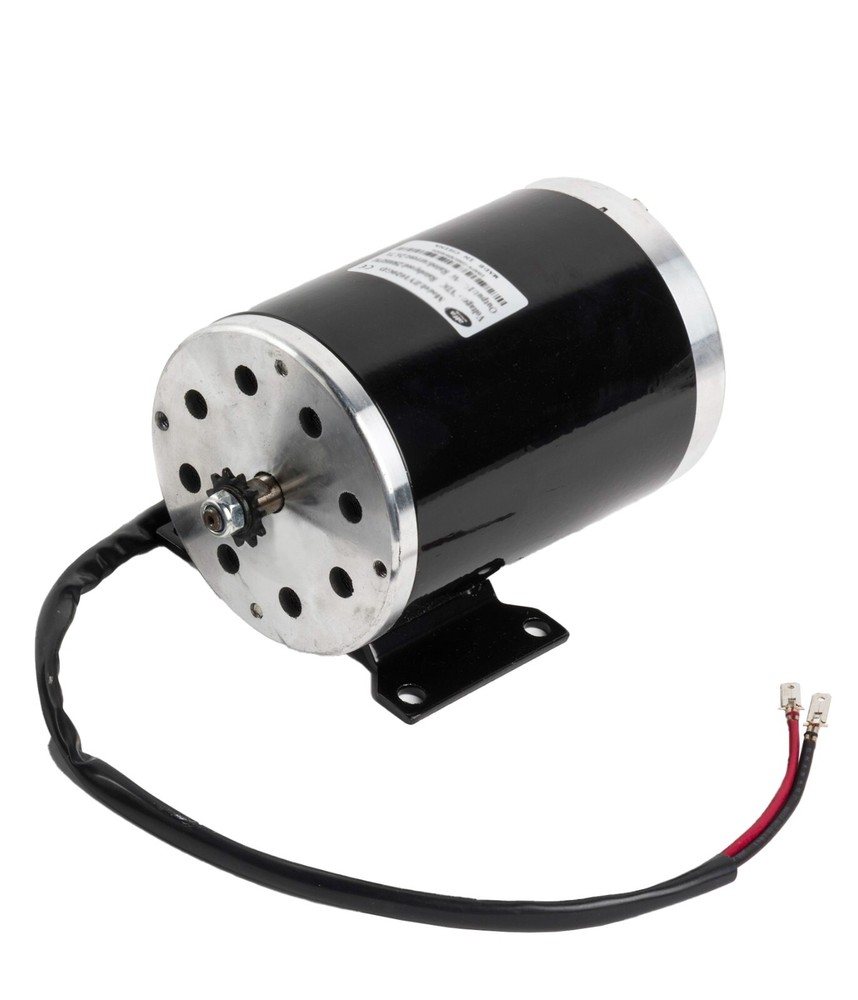

New 800 Watt 36 Volt ZY1020 motor with mounting bracket +Loose T8F (8mm pirch) sprocket 11T ATTENTION: The T8F sprocket is removed by holding it and turning the nut in reverse direction (Clockwise will loosen it) . The Nut has reverse Thread. ZY1020 compatible with MY1020. for electric scooter, mini bike quad and Go-Kart. It may also work for bicycle. Specs:- 36V DC 28.5 amps- Max 800 Watt- Max 2800 RPM- Chain drive (11 teeth sprocket) #25 chain, 6.35mm pitch+ Loose T8F Sprocket 11T 8mm pitch- Type of motor: DC, Brush- Reversible- 12 gauge leads- Permanent Magnet Dimensions: - Diameter: 4 1/4" - Length (no shaft): 5 1/4" - Length (with shaft): 6 1/4" This motor should work with some Xtreme or Razor electric scooter, mini bike or go-kart using a 800W or 750W motor. Should also work with any other brand with similar specs in motorPlease check connector type and motor size and specs. before buying as replacement. Please ask us if you need to know any specific dimensions for this motor so you can be sure it will work for you. Most orders ship same day from our warehouse Warranty: 12 months from purchase date. We will only replace motors that do not work out of the box. We test all motors before shipping. We will not replace burnt out motors.
